WiFi and LED

Settings

WiFi and LED

Settings
attachmenta__3_-removebg-preview (1)
Connect to WiFi Network

'LuminxaNode'

Password:

'luminxa1234'

Luminxa

WiFi

Settings

luminxabox2nolumin
luminxabox2nolumin

LED

Settings

attachmenta__3_-removebg-preview (1)
Connect to WiFi Network

'LuminxaNode'

Password:

'luminxa1234'

Luminxa

WiFi

Settings

attachmenta__3_-removebg-preview (1)
Connect to WiFi Network

'LuminxaNode'

Password:

'luminxa1234'

Luminxa

WiFi

Settings

WiFi Settings
Setting nameDescription
Network NameThe name (SSID) of your home WiFi
Network passwordThe password of your home WiFi
Static IPAn optional static IPv4 address
Static gatewayIn a static config, your gateway’s IPv4 address
Static subnetIn a static config, this normally is 255.255.255.0
mDNS addressName of your device for the Bonjour/Zeroconf protocol
Try connecting…How many seconds to try at boot to connect to home WiFi
Client IPThe current IP of the ESP in the home network
AP SSIDThe name of the ESPs internal WiFi hotspot (Access Point)
Hide AP nameThe ESPs Access Point won’t appear in WiFi lists of other devices
AP passwordThe password of the ESPs WiFi Access Point
AP WiFi channelThe 2.4G WiFi band of the AP. For advanced users
AP IPThe Access Point IPv4 address of the ESP (should always be 192.168.4.1)
WiFi Settings
Setting nameDescription
Network NameThe name (SSID) of your home WiFi
Network passwordThe password of your home WiFi
Static IPAn optional static IPv4 address
Static gatewayIn a static config, your gateway’s IPv4 address
Static subnetIn a static config, this normally is 255.255.255.0
mDNS addressName of your device for the Bonjour/Zeroconf protocol
Try connecting…How many seconds to try at boot to connect to home WiFi
Client IPThe current IP of the ESP in the home network
AP SSIDThe name of the ESPs internal WiFi hotspot (Access Point)
Hide AP nameThe ESPs Access Point won’t appear in WiFi lists of other devices
AP passwordThe password of the ESPs WiFi Access Point
AP WiFi channelThe 2.4G WiFi band of the AP. For advanced users
AP IPThe Access Point IPv4 address of the ESP (should always be 192.168.4.1)
Setting nameDescription
Network NameThe name (SSID) of your home WiFi
Network passwordThe password of your home WiFi
Static IPAn optional static IPv4 address
Static gatewayIn a static config, your gateway’s IPv4 address
Static subnetIn a static config, this normally is 255.255.255.0
mDNS addressName of your device for the Bonjour/Zeroconf protocol
Try connecting…How many seconds to try at boot to connect to home WiFi
Client IPThe current IP of the ESP in the home network
AP SSIDThe name of the ESPs internal WiFi hotspot (Access Point)
Hide AP nameThe ESPs Access Point won’t appear in WiFi lists of other devices
AP passwordThe password of the ESPs WiFi Access Point
AP WiFi channelThe 2.4G WiFi band of the AP. For advanced users
AP IPThe Access Point IPv4 address of the ESP (should always be 192.168.4.1)
61jvjNlnIdL._AC_SL1000_-removebg-preview

LED

Settings

Setting nameDescription
LED countHow many LEDs are in your WS2812B strip (max. 600 for ESP32)
4-channel LEDs (RGBW)Support for SK6812 LEDs with white channel
Auto-calculate whiteGet white channel from RGB
Apply presetWhich preset to load at boot (presets can be saved via the “heart” tab in the UI)
Default RGBStandard color at startup
Default brightnessHow bright the LEDs are by default
Default whiteOnly applies if you got an RGBW strip
Default effect IDWhich effect to have by default
Default effect speedThe speed of the effect animation
Default effect intensityHow strong the effect is. Only used by a few effects
Default secondary RGB(W)A secondary color that is used in many effects
Ignore and use current …Ignore all “Default” fields and set the boot default to the current light state
Apply preset cycle…The current preset cycle configuration will be used as boot default
Turn on after power upWhether the lights should turn on after a reset
Use Gamma for brightnessWill correct brightness changes to make it appear more linear. Advised to leave off
Use Gamma for colorWill correct colors to match those on a monitor. Strongly advised to keep on
Brightness factorFactor to change master brightness if it is to dim/bright for a certain configuration
Fade TransitionWhether to have a smooth fading transitional effect when changing colors/brightness
Transition delayHow many milliseconds the transition lasts
Timed light durationHow long the nightlight should stay on
Target brightnessWhat brightness the light should have after time is over
Fade downGradually fades down the light over the duration instead of turning it off at the end
Reverse LED orderMirrors the LEDs (last LED is first)
Init LEDs after WiFiEnable legacy boot, LEDs turn on after connection
WARLS offsetHow many LEDs the direct UDP input should be shifted
Skip first LEDWill turn off 1st LED and shift the remaining by 1 (1st LED used as a signal repeater)
LED Settings
Setting nameDescription
LED countHow many LEDs are in your WS2812B strip (max. 600 for ESP32)
4-channel LEDs (RGBW)Support for SK6812 LEDs with white channel
Auto-calculate whiteGet white channel from RGB
Apply presetWhich preset to load at boot (presets can be saved via the “heart” tab in the UI)
Default RGBStandard color at startup
Default brightnessHow bright the LEDs are by default
Default whiteOnly applies if you got an RGBW strip
Default effect IDWhich effect to have by default
Default effect speedThe speed of the effect animation
Default effect intensityHow strong the effect is. Only used by a few effects
Default secondary RGB(W)A secondary color that is used in many effects
Ignore and use current …Ignore all “Default” fields and set the boot default to the current light state
Apply preset cycle…The current preset cycle configuration will be used as boot default
Turn on after power upWhether the lights should turn on after a reset
Use Gamma for brightnessWill correct brightness changes to make it appear more linear. Advised to leave off
Use Gamma for colorWill correct colors to match those on a monitor. Strongly advised to keep on
Brightness factorFactor to change master brightness if it is to dim/bright for a certain configuration
Fade TransitionWhether to have a smooth fading transitional effect when changing colors/brightness
Transition delayHow many milliseconds the transition lasts
Timed light durationHow long the nightlight should stay on
Target brightnessWhat brightness the light should have after time is over
Fade downGradually fades down the light over the duration instead of turning it off at the end
Reverse LED orderMirrors the LEDs (last LED is first)
Init LEDs after WiFiEnable legacy boot, LEDs turn on after connection
WARLS offsetHow many LEDs the direct UDP input should be shifted
Skip first LEDWill turn off 1st LED and shift the remaining by 1 (1st LED used as a signal repeater)
LED Settings
Setting name Description
LED count How many LEDs are in your WS2812B strip (max. 600 for ESP32)
4-channel LEDs (RGBW) Support for SK6812 LEDs with white channel
Auto-calculate white Get white channel from RGB
Apply preset Which preset to load at boot (presets can be saved via the “heart” tab in the UI)
Default RGB Standard color at startup
Default brightness How bright the LEDs are by default
Default white Only applies if you got an RGBW strip
Default effect ID Which effect to have by default
Default effect speed The speed of the effect animation
Default effect intensity How strong the effect is. Only used by a few effects
Default secondary RGB(W) A secondary color that is used in many effects
Ignore and use current … Ignore all “Default” fields and set the boot default to the current light state
Apply preset cycle… The current preset cycle configuration will be used as boot default
Turn on after power up Whether the lights should turn on after a reset
Use Gamma for brightness Will correct brightness changes to make it appear more linear. Advised to leave off
Use Gamma for color Will correct colors to match those on a monitor. Strongly advised to keep on
Brightness factor Factor to change master brightness if it is to dim/bright for a certain configuration
Fade Transition Whether to have a smooth fading transitional effect when changing colors/brightness
Transition delay How many milliseconds the transition lasts
Timed light duration How long the nightlight should stay on
Target brightness What brightness the light should have after time is over
Fade down Gradually fades down the light over the duration instead of turning it off at the end
Reverse LED order Mirrors the LEDs (last LED is first)
Init LEDs after WiFi Enable legacy boot, LEDs turn on after connection
WARLS offset How many LEDs the direct UDP input should be shifted
Skip first LED Will turn off 1st LED and shift the remaining by 1 (1st LED used as a signal repeater)

Luminxa v1 Clearance Sale!

$24.99 Super Sale

Limited Quantities Available.

Great Christmas Present!

Offer Valid Until12/15/2021

Free shipping on all orders within USA

demo-attachment-99-noun_delivery_1095359

Fast & Free Shipping

Free Shipping On USA Orders
demo-attachment-101-noun_guarantee_952398

Money Guarantee

30 Day Money Back
demo-attachment-98-Group-995

Online Support 24/7

Technical Support 24/7
demo-attachment-104-noun_Wallet_745515

Secure Payment

All Cards/Crypto Accepted

Portable LED Controllers.

luminxalighta

Luminxa Light v1

$59.99 Select options
Sale!

Luminxa 2.2.2

$29.99 Add to cart
Sale!

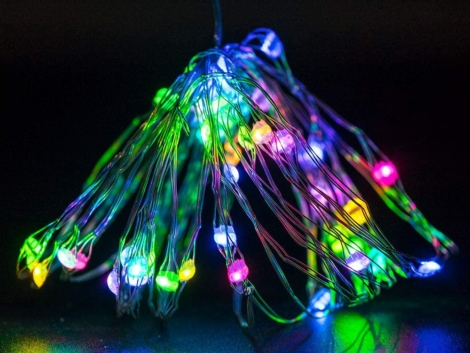

Luminxa Micro Fairy Pixel Kit

$26.99$66.99 Select options
Sale!

Luminxa Pro – Controller Only

$24.99 Add to cart
Sale!

Luminxa – Controller Only

$24.99 Add to cart
Sale!

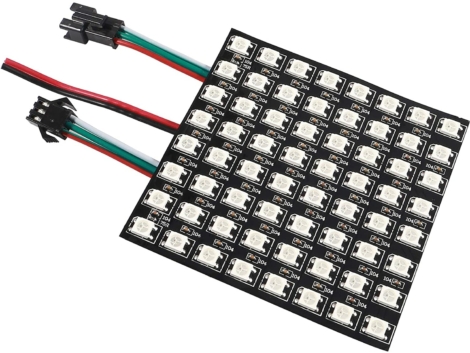

LED Matrix Kits

$89.99 Add to cart
Sale!

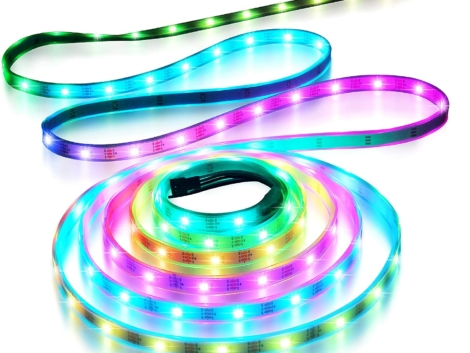

Luminxa LED Strip Kits

$54.99$89.99 Select options
Sale!

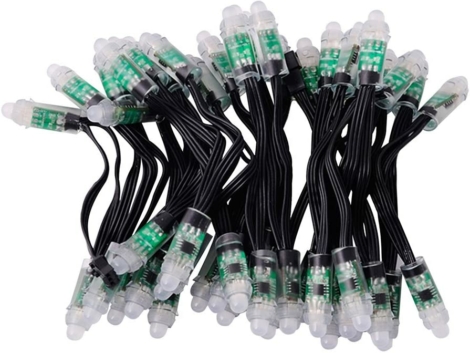

Luminxa LED Pixel Strand Kit
